家 > 产品 > 排放测试仪 > 烟仪

新产品

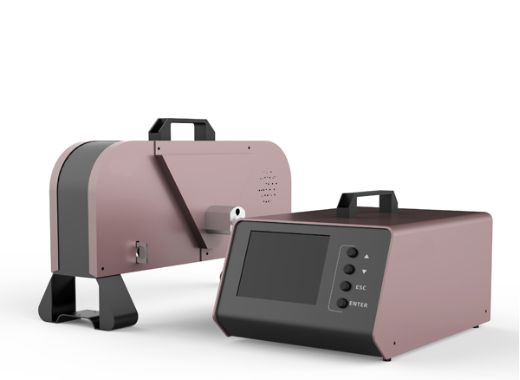

烟仪

MQY-2012烟雾计专门设计用于测试柴油车辆排气中的颗粒物排放。该设备可以提供对不透明度和颗粒浓度水平的实时测量，满足测试中心，4S商店和研讨会中使用的要求。

发送询问

产品描述

1. Measure the opacity of motor vehicle exhaust using the principle of split flow measurement;

2. Compliant with Chinese national standard GB3847-2018 Limits and measurement methods for emissions from diesel vehicles under free acceleration and lugdown cycle;

3. Applicable for environmental authorities, test centers, auto manufacturers, workshops, etc.

Feature

☞ Adopting the "air curtain" protection technology to prevent the optical system from being contaminated by the exhaust. Constant temperature control in the measurement room to prevent condensation of moisture in the exhaust, which may affect the measurement results;

☞ Equipped with functions, e.g. real-time testing and free acceleration testing;

☞ Equipped with oil temperature testing function;

☞ Large LCD screen with clear fonts;

☞ User-friendly interface with graphical display;

☞ Equipped with RS485 interface for communication with external computers;

☞ Optional built-in micro printer;

☞ Optional speed analyzer to measure engine speed.

Technical parameters

Item		Measurement range		Indication error		Resolution
Absorption ratio(Ns)		(0~99.9)%		±2.0%		0.1%
Light absorption coefficient (K)		(0~16.08)m-1		/		0.01m-1
Rotational speed		500~6,000r/min		±1%		1r/min
Oil temperature		(0~200)℃		±2℃		1℃
Flue gas temperature		(0~150)℃		±2℃		1℃
Other parameters
Working environment		Specifications
Air pressure	60.0kPa-110.0kPa	Power supply	AC220V±22V, 50Hz±1Hz		Rated power	150W
Temperature	-5℃~50℃	Upper machine dimension	353248210mm		Lower machine dimension	525170332mm
Relative humidity	≤95%	Upper machine weight	5.5kg		Lower machine weight	7.5kg
		Effective length of optical channel	215mm		Equivalent length of optical channel	430mm

热门标签: 烟仪
